A construction system designed by nature
We are rethinking construction for an easier, faster and more sustainable way of building.
A compete & certified wall solution.
3-in-1 system: structure, insulation, airtightness.

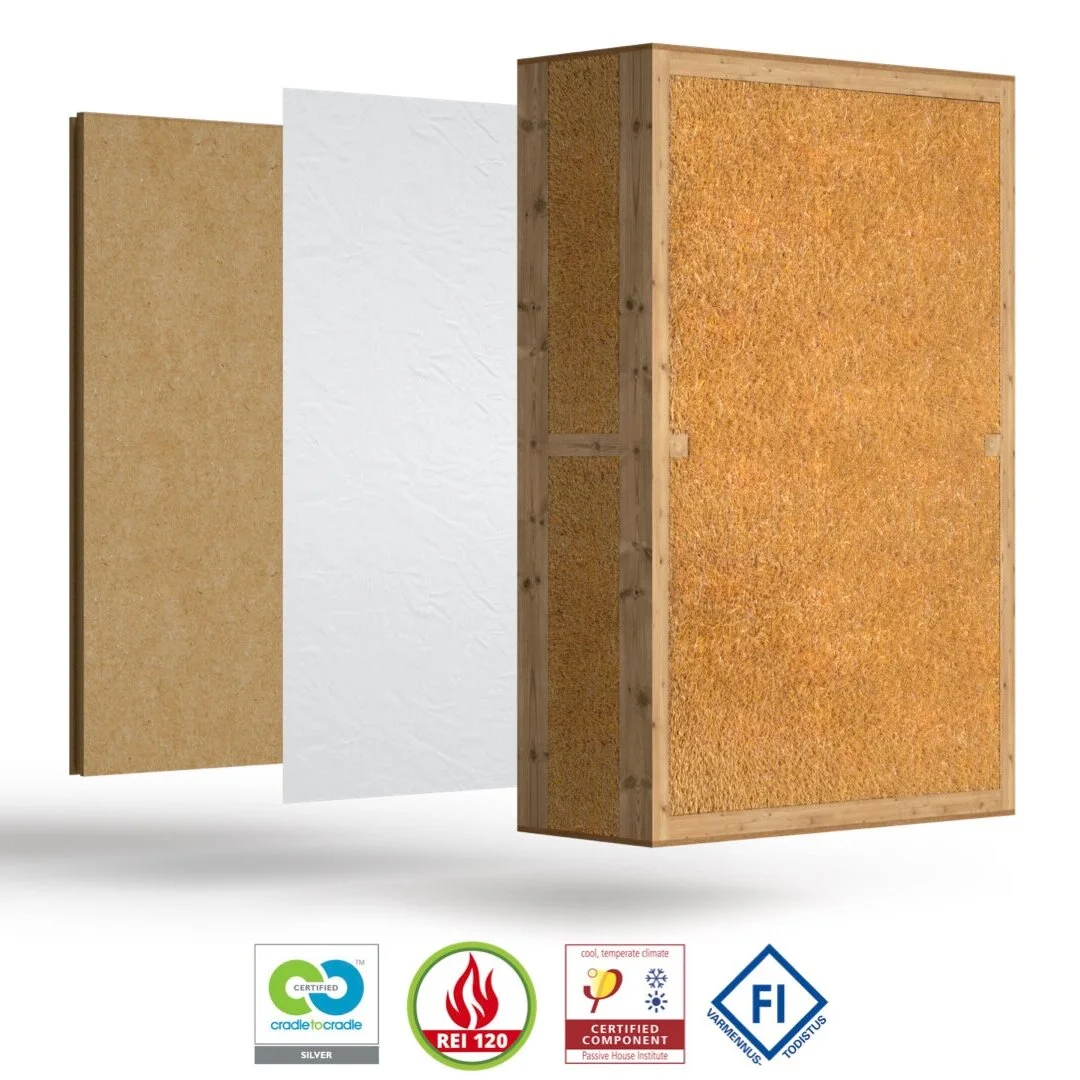

The wall build-up
-
Exterior layers
Exterior insulation wood fibre board helps achieve the Passive House Standard. It can be plastered or clad with a ventilated facade. An airtight diffusion-open membrane prevents heat loss and ensures humidity transfer. It also serves as a weather-protection during construction.
-
The panel
The timber-straw wall panel is made with multidirectional press technology, and is a double load-bearing structure made of FSC certified wood. The panels are made in 1 mm increments to adapt to any kind of building design. Panel types include braced panels, lintels, sills, and inclined gable wall elements. Standard thickness is 40 cm.
-
Interior layers
The system is completed with interior clay plaster. Thanks to its hygroscopic properties, it acts as an effective humidity regulation system. It has a completely natural finish without any VOCs, and with low embodied energy and a high thermal mass. A variety of standard interior finishes is also available.
U = 0.12 W/m²K
INSULATION COEFFICIENT
54 dB
AIRBORNE SOUND INSULATION
120 min
FIRE RESISTANCE
110 kg/m³
DENSITY OF PRESSED STRAW
Story of the panel
-
Straw harvest »
The story of every EcoCocon panel starts at the field. Every summer, we harvest the straw at nearby farms to prepare for the next year’s production.
-
» Panel manufaturing »
The panels are prefabricated under strictly controlled manufacturing conditions. Each panel is made to measure for the project at hand.
-

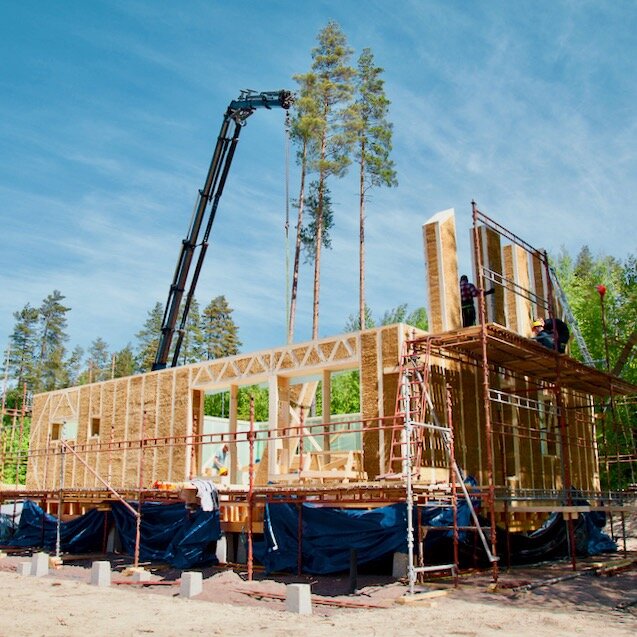

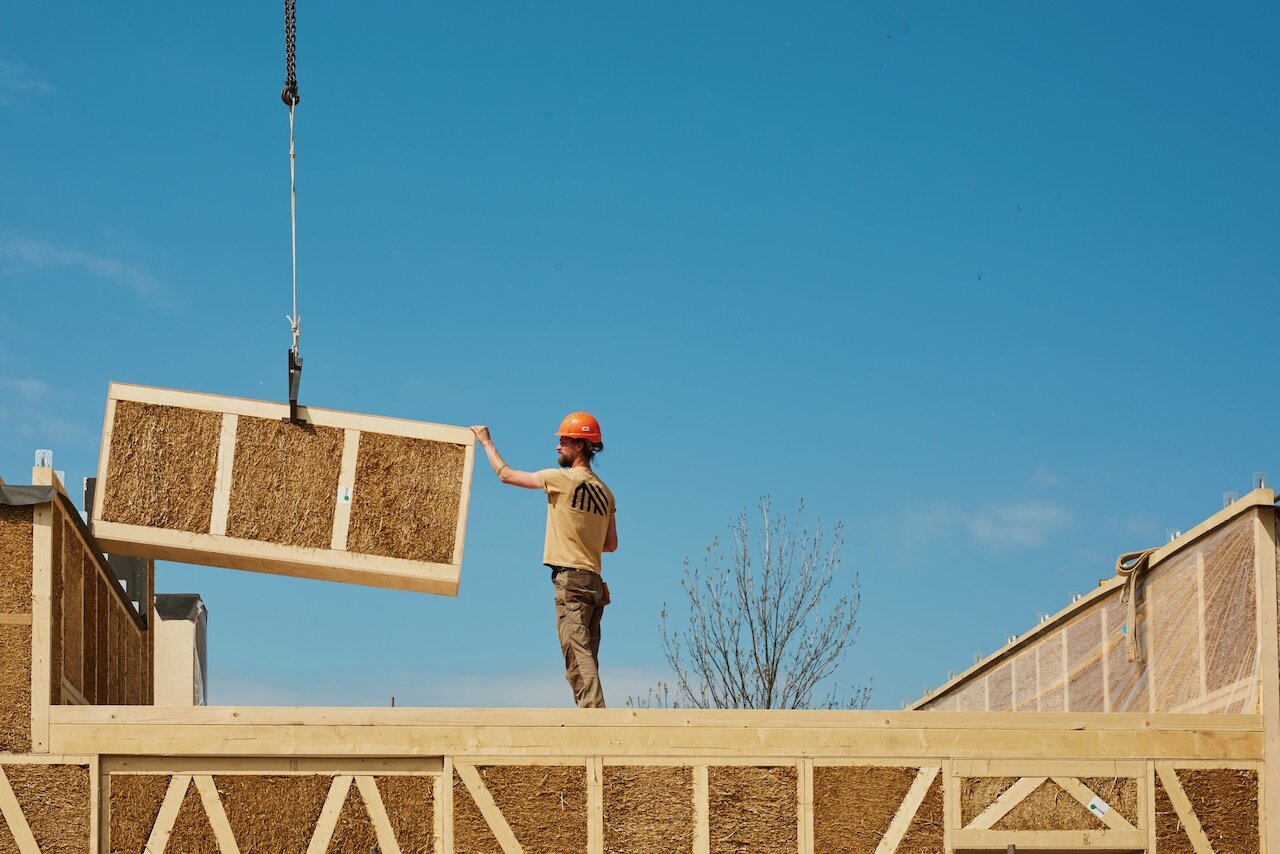

» Construction phase »
Once the foundations are ready, the panels get delivered directly to the construction site. Then they can be assembled in a matter of days using only basic carpentry tools.
-
» Healthy living space
At the end of each project, there is a space that sparks joy and is healthy for the people and the planet.
Why choose straw?
Nanotechology patented by nature.
Thanks to its unique cellular structure, straw has an excellent U-value and a high thermic capacity providing thermic comfort all-year-round.
Natural carbon sink.
Through photosynthesis, straw absorbs great amounts of CO2 over its growth period. Just 1 m2 of our wall panels sequesters as much as 97.6 kg of CO2.

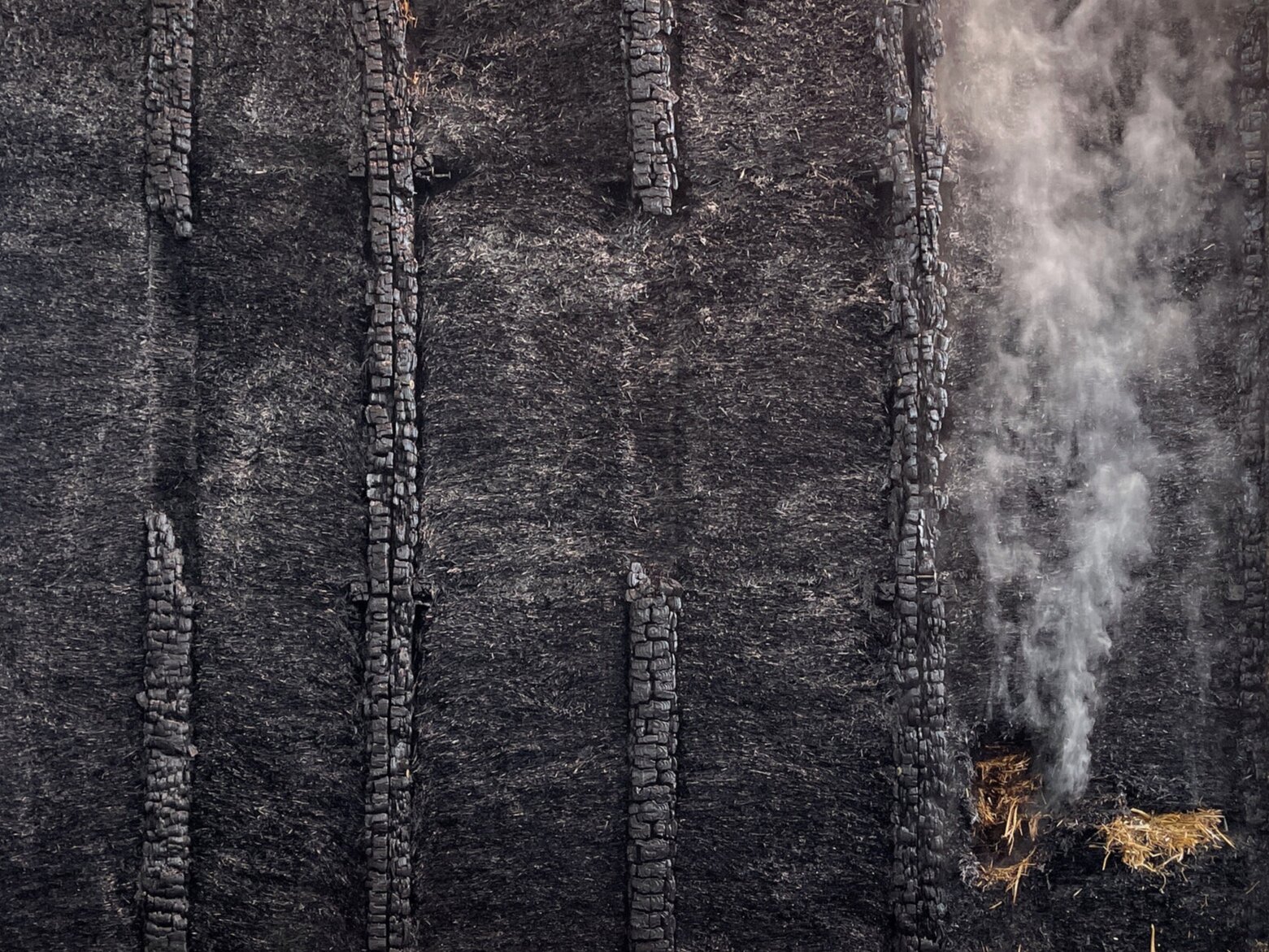

Great fire rating.
Straw has a high content of silica - a natural fire retardant. When burning, it creates a charcoal layer on the surface that protects it from further combustion.
Safeguarding forests.
Replacing unnecessary wood usage, straw construction protects forests and natural habitats from over-exploitation.
The EcoCocon wall system has it all.
Passive House Element
Super-insulated walls are designed with no cold bridges and an easy-to-achieve airtightness concept.
Carbon-storing construction
The negative CO2 balance of our panels means that our construction stores more carbon than it released.
Exceptional Comfort
Vapour-permeable walls provide healthy indoor microclimate together with great acoustic and thermal comfort.
Optimal Humidity
Directly applied interior clay plaster acts as a natural humidity regulation system.
Made to Measure
Custom-made elements, including six different panel types, can fit any building design - residential, public, educational, or commercial.
Cradle-to-Cradle Certified
Whatever it is, the way you tell your story online can make all the difference.
Rapid Installation
Precision-cut prefabricated wall panels ensure simple and rapid installation on site with only a small team of carpenters.
Controlled quality
The system is prefabricated in a factory under rigorously controlled conditions, allowing for very high precision.
Discover our network.
Over the years, we have worked with a vast amount of different professionals to realise the many projects here in Finland.
We can recommend to you a range of architectural, engineering and building companies, who have experience of working with EcoCocon, and can help you realise your dream project.
Take contact with us for more information on these companies. We will be happy to help you find the right partners in your area. We can also work with your contractors if you already have one.
Kati Juola-Alanen, Architect
- Using wood intelligently, limiting it to structural function and replacing the rest with a rapidly renewable and completely natural resource, makes EcoCocon an excellent alternative to conventional construction.
-
Healthy.
-
Sustainable.
-
Efficient.
